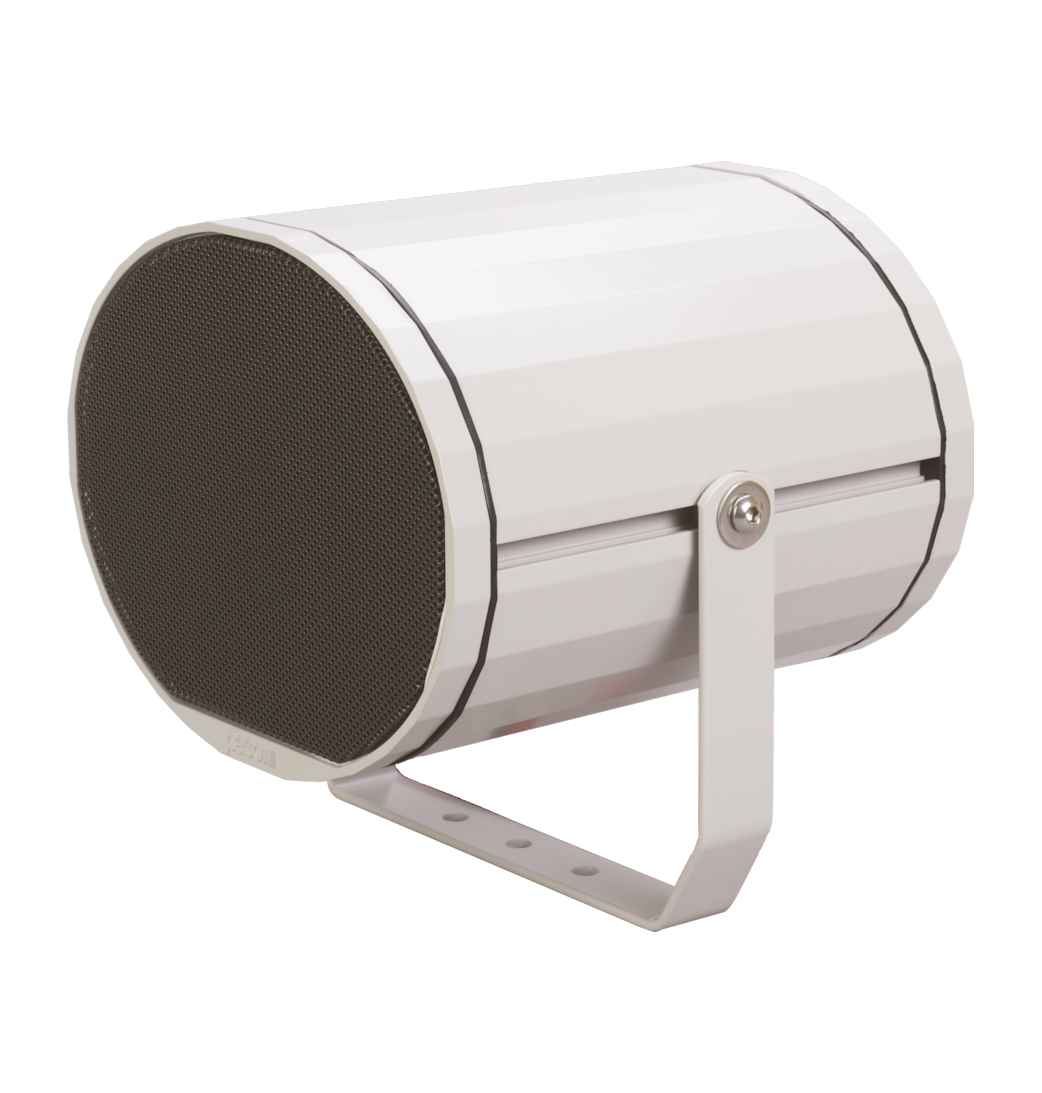

AD634
Outdoot IP SIP Projector
AD634 SIP projector speaker is part of a series of TEMA speakers to be connected in a LAN for the PA (Public Address) paging of ads, speech and music, in offices, factories, public places and outdoor.
AD634 is a bidirectional communication system with built-in microphone with local listening function and speaker-control functionality.
- Installation is simplified thanks to the PoE (Power over Ethernet) power supply for direct power supply over UTP cable, without the need for other cables.
- The complete control of the system takes place remotely with every Web Browser and security password for access.
- The Flash memory stores audio contents for manual or automatic sound diffusion at pre-established times.
Applications and Target
- Video surveillance: warning deterrence to malicious people under video control area
- Companies, Offices, Factories, Warehouses, Industry
- Warehouses, Garage, Supermarket, Parking
- Outdoor public areas
- Alarm and warning systems
- Hospitals, Schools, Railway Stations, Airports, Ports
Power Amplifier Technology
A double Class "D" Amplifier with high efficiency and low consumption can generate a maximum output power of 12W (2x6W) 8 ohms with high sound quality.
iOS and Android APP
The APPs for smartphones with iOS and Android operating systems are available for free download. With these applications it is possible to operate the IP loudspeakers on the network and launch announcements even from smartphones.
Integration with VoIP SIP phone systems
AD634 can be perfectly integrated with VoIP telephone systems (IPPBX) with SIP protocol and can be registered as a regular VoIP phone or P2P (Peer to Peer) without a PBX.
Special applications
Remote alerts for intruder deterrence, automated emergency messages, notifications to security staff for requests for help and immediate interventions.
Packing list
1 IP VoIP SIP AD634 sound projector
1 Paper manual
1 CD-ROM with complete documentation
1 3mt Patch Cord LAN UTP Cable for pre-installation test functions
Innovative features and performance
- Launch of PA ads from any phone by calling the account of the IP SIP Speaker
- Security code from keyboard to start the announcement
- 2nd SIP account night call repeater function, sounds from freely customizable files
- Output for 2nd passive speaker 20W 8 Ohm to extend the served area or to generate a 100V-20W audio line
- PoE (Power over Ethernet) 802.af standard, only one cable connection
- Activation of the two internal relays that can be associated with events
- Internal microphone for environment listening (Monitor) and normal bidirectional communication
Technical features
| LAN, protocols | TCP/IP Network 10/100BaseTx, SIP 2.0 |
| Grade of protection | IP65 |
| Power Supply | PoE, Injector PoE or ext power supply |
| PoE | 802.3af class 0 12,95W |
| External Power Supply (Opt.) | 230Vac/12-24Vdc-1-2A |
| Security | Password access, activity logs |
| Inputs from external alarm commands | 1 |
| Inputs for diversified call buttons | 2 |
| Contact rating of the 2 internal relays | max 30Vdc – 1,5A |
| Technology | IMX25 400MHz processor |
| Memory | 256MB Ram, Micro-SD Flash 2GB |
| Housing material | aluminum and Abs |
| Operating temperature | from -20° to +55°C |
| Storage temperature | from -20° to +65°C |
| Umidity | up to 100% |
| Installation | wall mount |
| Dimensions | Diam. 240x290mm |
| Weight | 2,1 Kg |
| Audio Amplifier | 40W (Ext. Pwr Supply) Class “D” (10W PoE) |
| Acoustic unit impedance | 8 Ohm |
| Audio Bandwidth | 150 – 15.000Hz |
| Acoustic pressure (SPL) | 105 dB A (1KHz a 1 metro) |
| Internal Microphone | omnidirectional electret 30Hz-18KHz |
| Multicast RTP Audio Streaming | G.711 a-Law, μ-Law, G722 Linear 16kHz, 24kHz, 32kHz, 44,1kHz |
| Audio Communication | Unidirectional and Bidirectional |
| Additional speakers | 1 passive speaker 8 Ohm 20W |
| Messages/Sounds | pre-recorded into the internal SD |
| Connection | SIP Server (IPPBX) or P2P (Peer To Peer) |
| Smartphone APP | iOS, Android |
| Acoustic signaling | call tones, ads Ding-dong |
| Visual signaling | Active call led |
| Programming | user-friendly web interface and passwords |
| Origin | entirely developed and manufactured in Italy |
| Warranty | 2 years, possibility of extension (option) |
| Compatibility | CE, ROHS |
Optionals and Software
AA-39D1A
DIN Switching Power Supply 220Vca/15Vcc-1,0A
AA-39E3
DIN Switching Power Supply 220Vca/24Vcc-1,5A
AA-39E6V
DIN Switching Power Supply 220Vca/24Vcc-2,5A
AA-39P4
PoE Injector 230Vac/ 48Vdc-12,95W
AA-36
Power relay repeater 230Vac/16A – 4KW
AD320/30
DIN transformer 100V-30W audio line
AD32
Audio signal isolation transformer, ideal for signal relaunch to remote amplifiers
AD330/xx
Built-in/ceiling passive speaker 8 Ohm 12W with Transformer 12/6/3 W response 80Hz - 20KHz, Diameter 200x160 mm
AD699/xx
Flash lights with light bulb Xenon or High Brightness LEDs
AD696/CT4 - CT8
PoE console with cardioid electret microphone for SIP and Multicast calls, 12-28 Zones
ADAM
Advanced software for complete management of all terminals and multi-zone microphone consoles
Smartphone App
iOS, Android, Windows
Device Scan
Portable software to search for all Tema systems on the network, with display of the IP ad-dress, MAC address, serial number S/N, device name, description. It is possible to quickly change the IP address and Subnet Mask or set the system in DHCP.
